STEM I

STEM I focuses on the Independent Research Project, like mine, which you can read all about below. We work on this from the very start of the school year, up until February fair. Some students move onto WRSEF, or even MSEF/ISEF. While working on this project, we practice our writing skills with a grant proposal and a thesis on our project.

A Machine Learning Model for Antibiotic Resistance Gene Forecasting

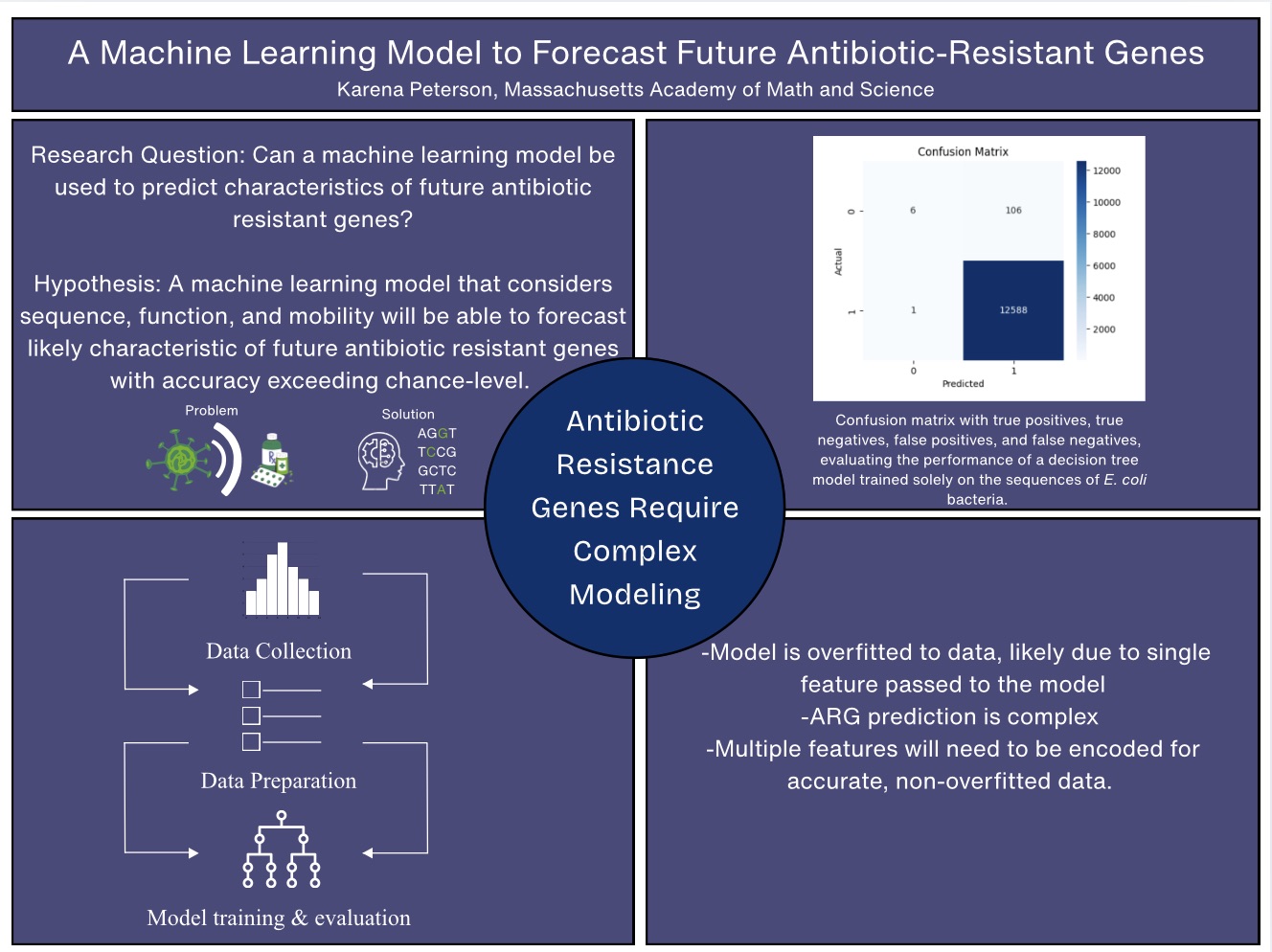

This is a quad chart on my STEM Independent Research Project. This is the primary focus of the class right now, along with getting experience pitching and writing about our projects.

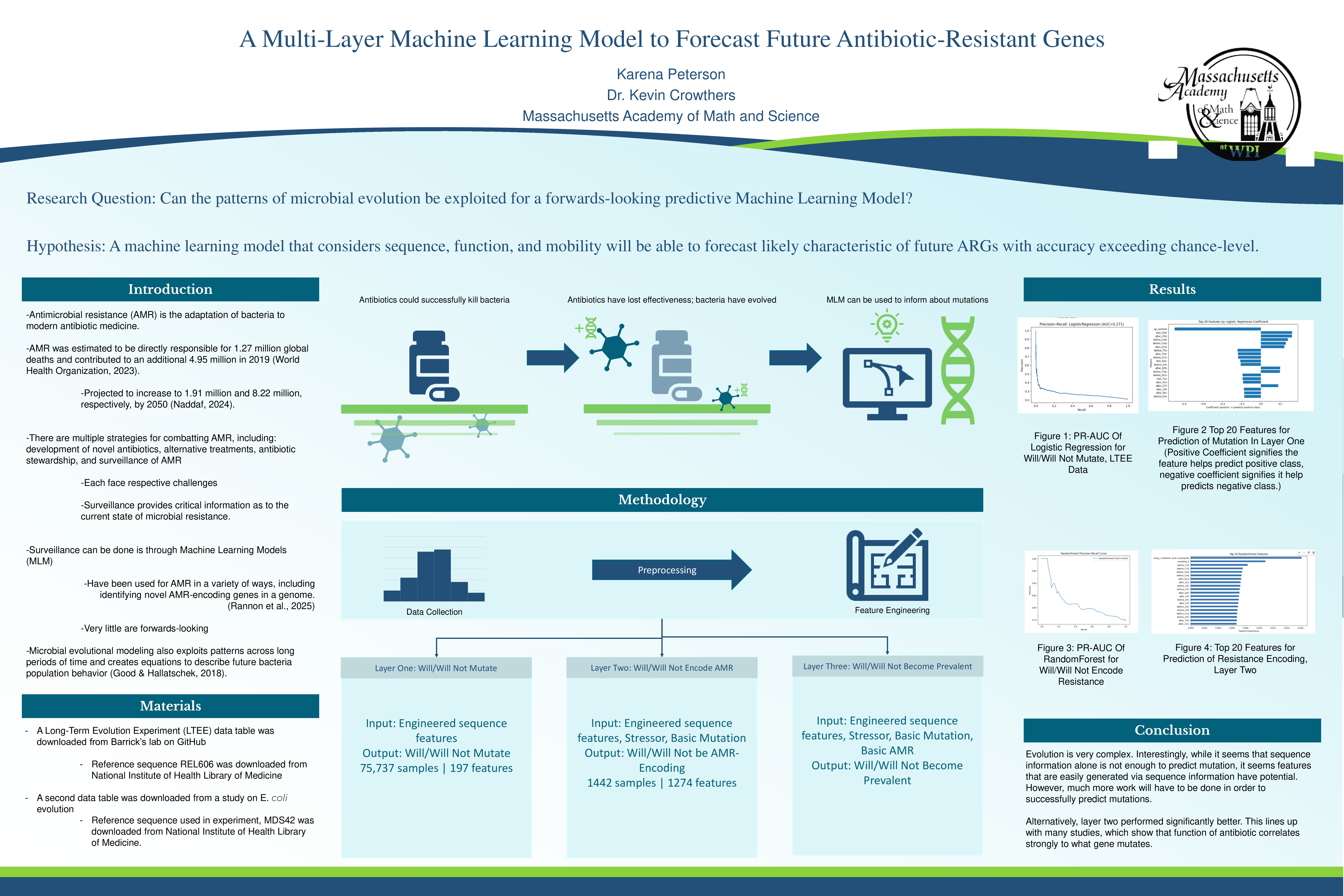

Quad Chart on A Machine Learning Algorithm

A Multi-Layer Machine Learning Model to Forecast Future Antibiotic-Resistant Genes

For my STEM project, I built a multi-layered machine learning model that evaluates genes before they have mutated for antibiotic resistance.

Antimicrobial resistance, or the adaptation of microbes to survive and reproduce under the selective pressure of antimicrobials, is an increasing prevalent issue. The growth of these mutational abilities continuously threatens critical aspects of modern-day medicine, including childbirth, surgery, and the treatment of infectious disease. Fortunately, the exploitation of machine learning models’ pattern recognition has allowed for the monitoring of the current antimicrobial genotype. However, the vast majority of these models are retrospective, meaning they make predictions for existing gene sequences rather than forecasting the likely future genome. This machine learning model attempts to bridge this gap in literature, advance the field towards the more frequent use of forwards-looking models, and provide evidence for the feasibility of future-focused antimicrobial forecasting models. To create a more feasible scope, the model is trained on laboratory strains rather than wild type to limit data noise and complexity and is further limited to E. coli bacteria. The model was trained using both antimicrobial-adapted bacteria and non-antimicrobial-adapted bacteria for data quantity, though both received respective labeling in the dataset. ROC-AUC, Confusion Matrices and feature extractions were performed.

Research Question:
Can the patterns of microbial evolution be exploited for a forwards-looking predictive Machine Learning Model?

Hypothesis:
A machine learning model that considers sequence, function, and mobility will be able to forecast likely characteristics of future ARGs with accuracy exceeding chance-level.

Antimicrobial resistance (AMR) is the adaptation of bacteria to modern antibiotic medicine. While it has become significantly more pressing as of the last few decades, the risk of AMR was present at the very beginning, with the invention of the first antibiotic, penicillin. It’s creator, Alexander Fleming, issued a warning of how misuse of the drug could unintentionally result in the selection of stronger, more resistant bacteria (Rosenblatt-Farrell, 2009). Despite these warnings, antibiotics were and are continuously misused, leading to the current crisis. The antimicrobial crisis was first marked by the increase of penicillin-resistant bacteria post-WWII and further stressed after the first case of methicillin-resistant Staphylococcus aureus was reported in the same decade (Ventola, 2015).
Since then, the issue has continued to grow due to a variety of factors. While bacteria are inherently able to adapt, the improper use of antibiotics has allowed the bacteria more opportunities, aggravating the issue. For instance, the prescription of antibiotics within the health care field is incorrect in 30% to 50% of cases. Extensive use of antibiotics within the agricultural field, as well, have also given the bacteria a multitude of opportunities to adapt (Ventola, 2015). While policies have been implemented to mitigate overuse and improper diagnosis of antibiotics, recent years have challenged the effeteness, especially in regards to the COVID-19 pandemic.
Impact of COVID-19 Pandemic on AMR
In the years before the SARS-CoV-2 pandemic, more commonly called COVID-19, attempts to mitigate the growing resistance had been proving more successful (Lee et al., 2013). However, a systematic review of 23 studies done during the pandemic revealed increased resistance in multiple bacterial species (Sulayyim et al., 2022). For instance, one study found that resistance to the antibiotics imipenem, meropenem, and ciprofloxacin had absolute increases of 32.3%, 36.8%, and 22.6%, respectively (Despotovic et al., 2021). These increases were likely due to self-medication, premature antibiotic administration and improper use of antibiotics within the healthcare system (Sulayyim et al., 2022).
Current State of Crisis
AMR was estimated to be directly responsible for 1.27 million global deaths and contributed to an additional 4.95 million in 2019 (World Health Organization, 2023). Concerningly, these numbers are projected to increase to 1.91 million and 8.22 million, respectively, by 2050 (Naddaf, 2024). Consistent with these findings, Patra et al. report an annual increase of global AMR-related deaths of 68% to 75% each year (Patra et al., 2025). Additionally, the resistance levels of the bacteria, themselves, have also shown an increase. One study reported the median rates from 76 countries for third-generation cephalosporin-resistant E. coli in 2022 to be 42%, a rise from the 36% reported by 49 countries in 2020 (World Health Organization, 2020).
Despite the growing ineffectiveness of antibiotics, they remain critical to modern medicine. Notably, antibiotics are vital for surgery, childbirth, infection treatment, and cancer chemotherapy, and are a pillar of modern-day medicine (World Health Organization, 2023). Without antibiotics, millions of people who are infected every year would die (Salam et al., 2023). Considering this, the noted increases are even more concerning. Therefore, a diverse set of tools are continuously being developed to fight against the crisis.
Strategies to combat antibiotic resistance
	There are multiple strategies for combatting AMR, such as the development of novel antibiotics. However, this is often expensive and not financially rewarding for pharmaceutical companies, thus discouraging production altogether (Gargate et al., 2025). Alternative treatments have also been explored, but face developmental hurdles (Alaoui Mdarhri et al., 2022). Antibiotic stewardship, the measurement and improvement of how antibiotics are prescribed, is also a valid tactic, though it has been shown to be less effective in recent years (Sulayyim et al., 2022). Finally, many medical professionals and researchers alike utilize surveillance of AMR.
	Surveillance of AMR involves the collecting, analyzing, and reporting of data on organism susceptibility patterns, and can inform health policies, such as antibiotic stewardship, and emergency response, improve patient care, and identify long-term trends (Robillard et al., 2024, Rannon et al., 2025). While surveillance systems themselves are not a perfect tactic for AMR, they still provide critical information as to the current state of microbial resistance.
Emerging computational strategies
One way in which surveillance is done is through Machine Learning Models (MLM), which excel at pattern recognition and thus have been applied to the AMR crisis in a multitude of ways. For instance, Machine Learning algorithms have been developed to recognize antibiotic resistance genes (ARG) without the need for a predefined database. Importantly, a MLM that also utilizes biological information to identify truly novel ARGs within a sequence, named Detection of Resistance to AntiMicrobials using Machine-learning Approaches (DRAMMA), demonstrated high performance and was able to successfully annotate gene segments with no known function as ARGs, suggesting their novelty (Rannon et al., 2025). The success of this model in predicting entirely unknown, novel purposes of gene segments suggests the capabilities of MLM for novel gene prediction. However, little to no known research has exploited this to forecast future antibiotic resistance genes, instead focusing on retrospective analysis.
Relevance of Microbial Evolution Modeling
In a separate but related field to AMR surveillance, microbial evolutional modeling also exploits patterns across long periods of time. This allows for the ability of models and principals to characterize evolution quantitively in microbes, with a forward-looking predictive lens. A well-established method, for example, called the Wright-Fisher process can accurately represent the long-term behavior of two competing genetic variants within a population, given certain numerical data under specific conditions. (Good & Hallatschek, 2018). Importantly, these models use known variants to describe future populations, instead of describing future variants as this project proposes. However, these models demonstrate patterns within microbial evolution, and the ability to quantitively characterize microbial evolution, albeit it with limits. This thus creates a need to test whether a MLM, which excels at pattern recognition, could exploit retrospectively observed structures to make predictions about future variants.

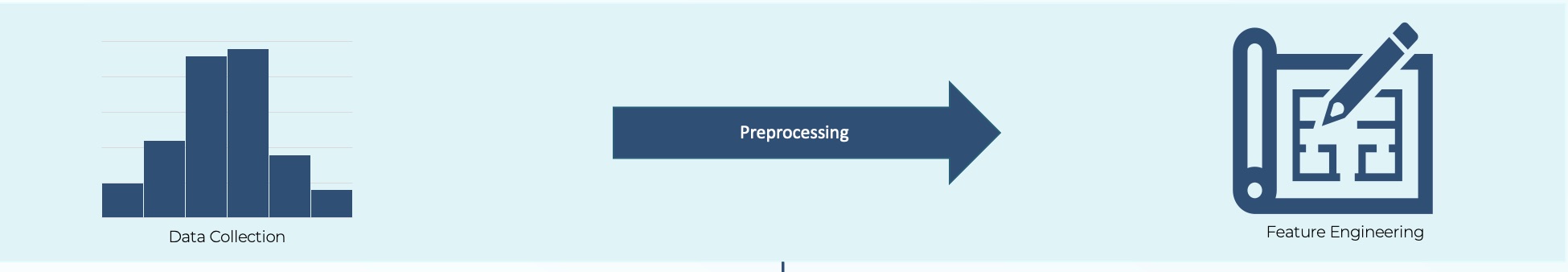

Equipment and Materials
	All code was done on Google Colab. A Long-Term Evolution Experiment (LTEE) data table was downloaded from Barrick’s lab on GitHub (CITE). Reference sequence REL606 was downloaded from National Institute of Health Library of Medicine. Sequence was read using Bio.SeqIO.  Pandas was used to process table. MinHash was used to remove duplicate sequences in LTEE data table. A second data table was downloaded from a study on E. coli evolution, referenced as Evolutionary Constraints Data (ECD). Reference sequence used in experiment, MDS42 was downloaded from National Institute of Health Library of Medicine. Sequence was read using Bio.SeqIO.  Pandas was used to process table. MultiLabelBinarizer was imported from Sklearn.preprocessing for creation of k-mers. A third data table from an experiment tracking mutations in E. <em> coli </em> was downloaded, referred to as Mutations Over Time (MOS), and the reference sequence MG1655 was also downloaded from NIH.

LTEE Processing
	All missing values were dropped from table. Additionally, the following columns were dropped due to data leakage or irrelevance: html_mutation; html_position; html_mutation_annotation; html_gene_name; html_gene_product; strain; gene_list; treatment; population; region_type; locus_tag; gene_name; clone; gene_product; snp_type; mutation_len; time; mutator_status; type; gene_position; mutation_category. Middle position in origin of replication and mutation position was used to create feature distance from origin. Sequences were extracted from original sequence, REL606, according to mutation position. 30 base pairs before and after were also extracted for genomic context. Itertools was used to create 3 k-mer segments, which were counted. GC content was calculated. Negatives were pulled from reference sequence by ignoring area with overlapping positive mutations. A ratio of 1:1 positive to negative was used. Same features were calculated for negative examples.
ECD Processing
Supplementary data table 3 was downloaded as .csv. There were no missing values in the data table. The following columns were dropped due to data leakage or irrelevance: strain_name; Mutation type; Effect; annotation. Mutation lengths were calculate using the provided mutation type and position. Mutations were extracted from reference sequence MDS42, as well as 30 base pairs before and 30 base pairs after for genomic context. The sequences were k-merized and counted in segements of 3 base pairs. A 1:1 ratio was established.

MOS Processing
All rows with missing values were dropped. Irrelevant columns or ones that would lead to data leakage were dropped. K-mers were created for the original sequence of the mutation, found by referencing back mutation position to sequence. Positives were labeled as those with over 10% frequency in population. A 1:1 ratio was established.

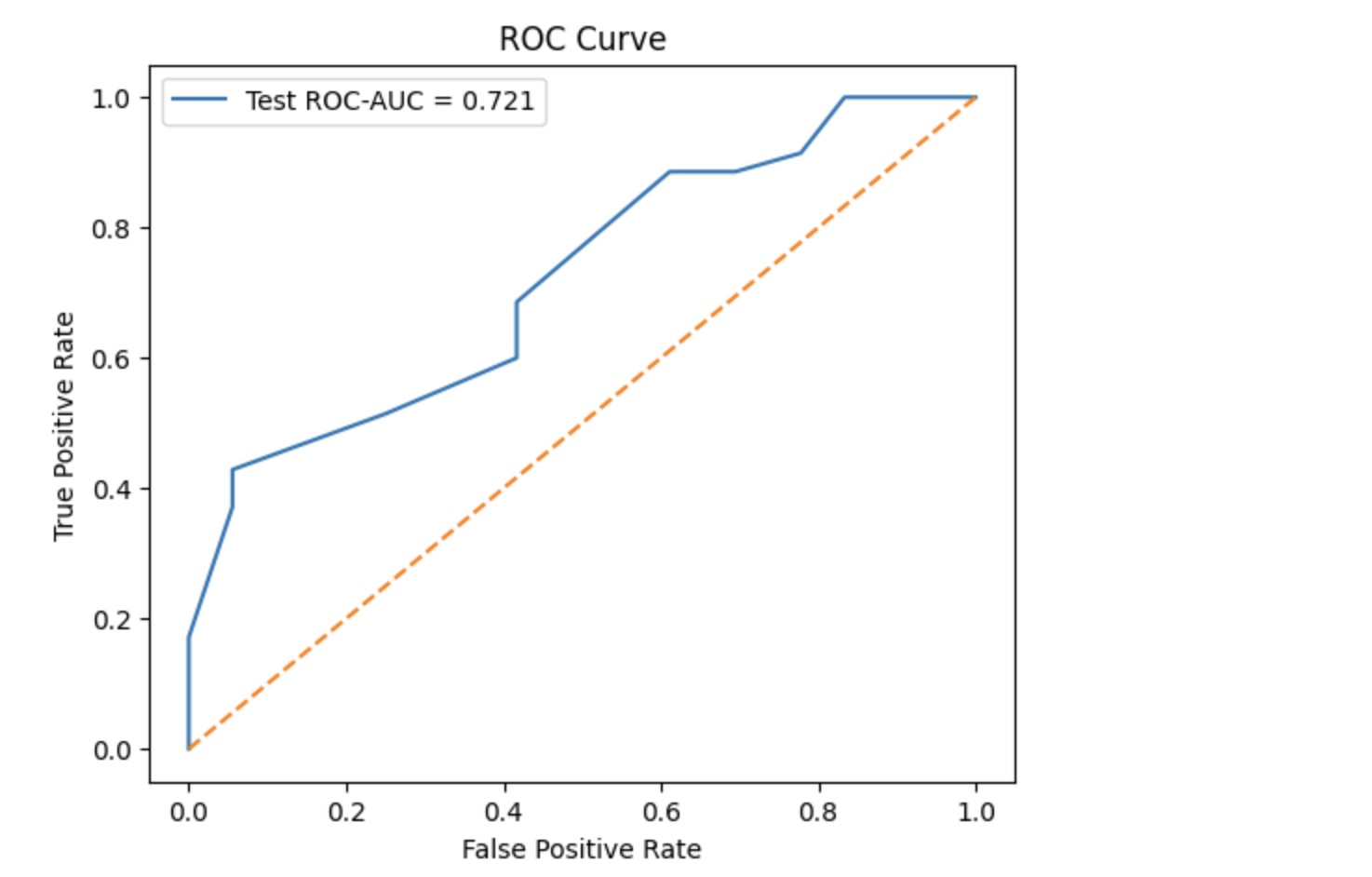

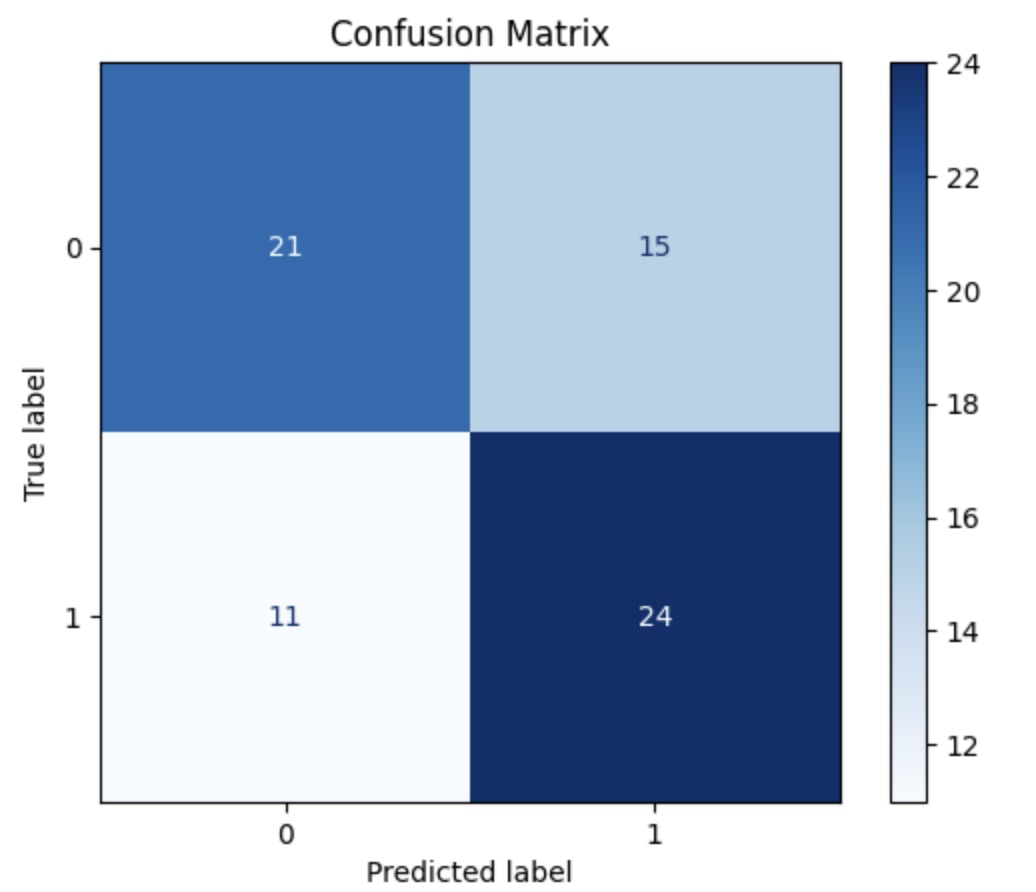

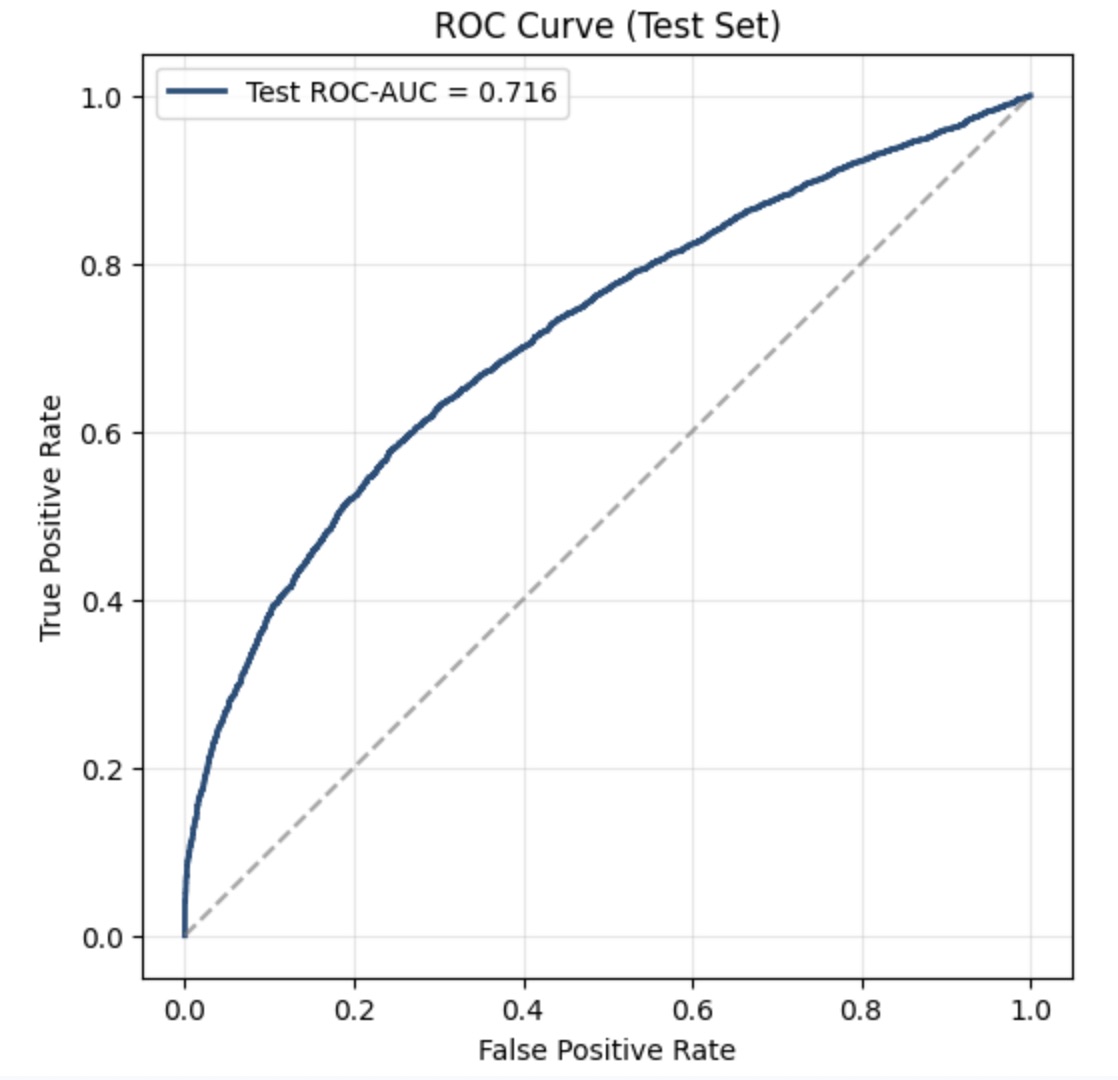

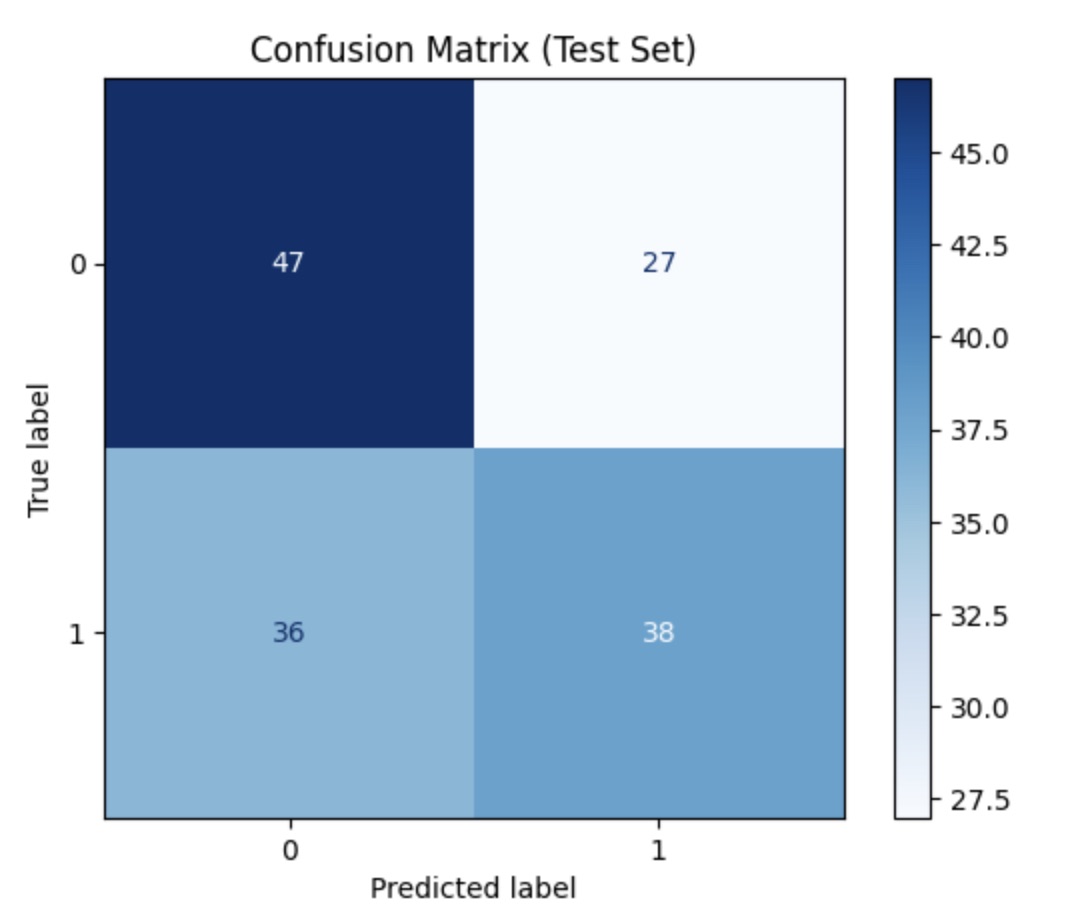

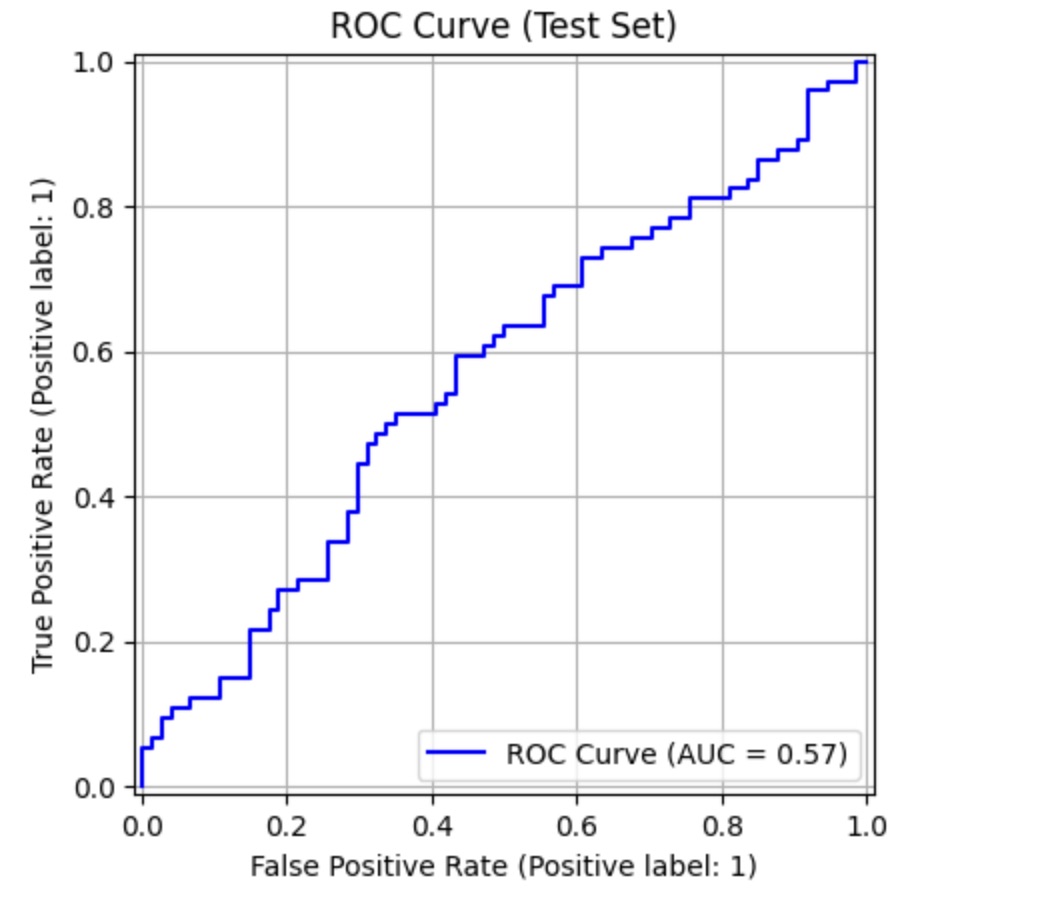

An ROC-AUC demonstrates the ability of the model to distinguish between positives and negatives. The ROC-AUC for the first layer indicates a 71.6% chance that the model will give a higher likelihood of probability to a positive than a negative. For reference, a score of 50% would indicate a model that is randomly guessing between positives and negatives, placing the first layer of the model roughly 20% higher than chance level accuracy. Considering biological restraints and complexity, this is significant. In contrast, the second layer performed much closer to chance level accuracy, with a ROC-AUC score of 57%. This is in contrast to studies that demonstrate a relation between the function of a gene and a mutation in a corresponding gene, suggesting the model may have before badly not due to impossibility but rather small data sets. Finally, the third layer also achieved around 20% above chance-level, with a ROC-AUC score of 72.1%. To further validate these results, a five-fold Cross Validation ROC-AUC was performed. This split the data into five separate training and testing groups, and performed an ROC-AUC test on each of the above. The standard deviation across the five test cases was calculated. Layer one scored 0.0091 SD, layer two scored 0.0304, and layer three scored a 0.0666 SD. The desired SD is a score under 0.05, which indicates low variability and confidence in what the machine learning model learned. While layer one and two each performed well below, layer three demonstrates a slightly above SD. A confusion matrix was also performed for each layer to demonstrate ability of model to classify. The confusion matrix for layer one revealed a strong ability to classify positives correctly, however, with the trade-off of a higher rate of false positives. Similarly, layer two's confusion matrix reveals a strong tendency to classify positive, however, with a high specificity. Finally, layer three's confusion matrix demonstrates a larger tendency to classify as negative than positive. Finally, feature extraction was done for each of the three layers. Importantly, the vast majority of features were k-mer counts, resulting in k-mer counts to consistently appear in the top features. However, it is still important to note which k-mers were deemed more important than the 64 possible k-mer counts. For instance, layer one demonstrates GGG count before the strand in question to be the most important feature. This could indicate GGG to be a signifier for mutation, however, more research is necessary to make a more definitive claim. The next few top features of layer one are not raw sequence information as with k-mers but easily extract-able sequence context. In layer two, a particular drug shows to be the highest feature, which could again indicate that the drug is more likely to lead to AMR encoding mutations. Finally, layer three also ranks all five drugs in the experiment as important factors, demonstrating that certain drugs, depending on their ranking, may be more likely to lead to mutation than others.

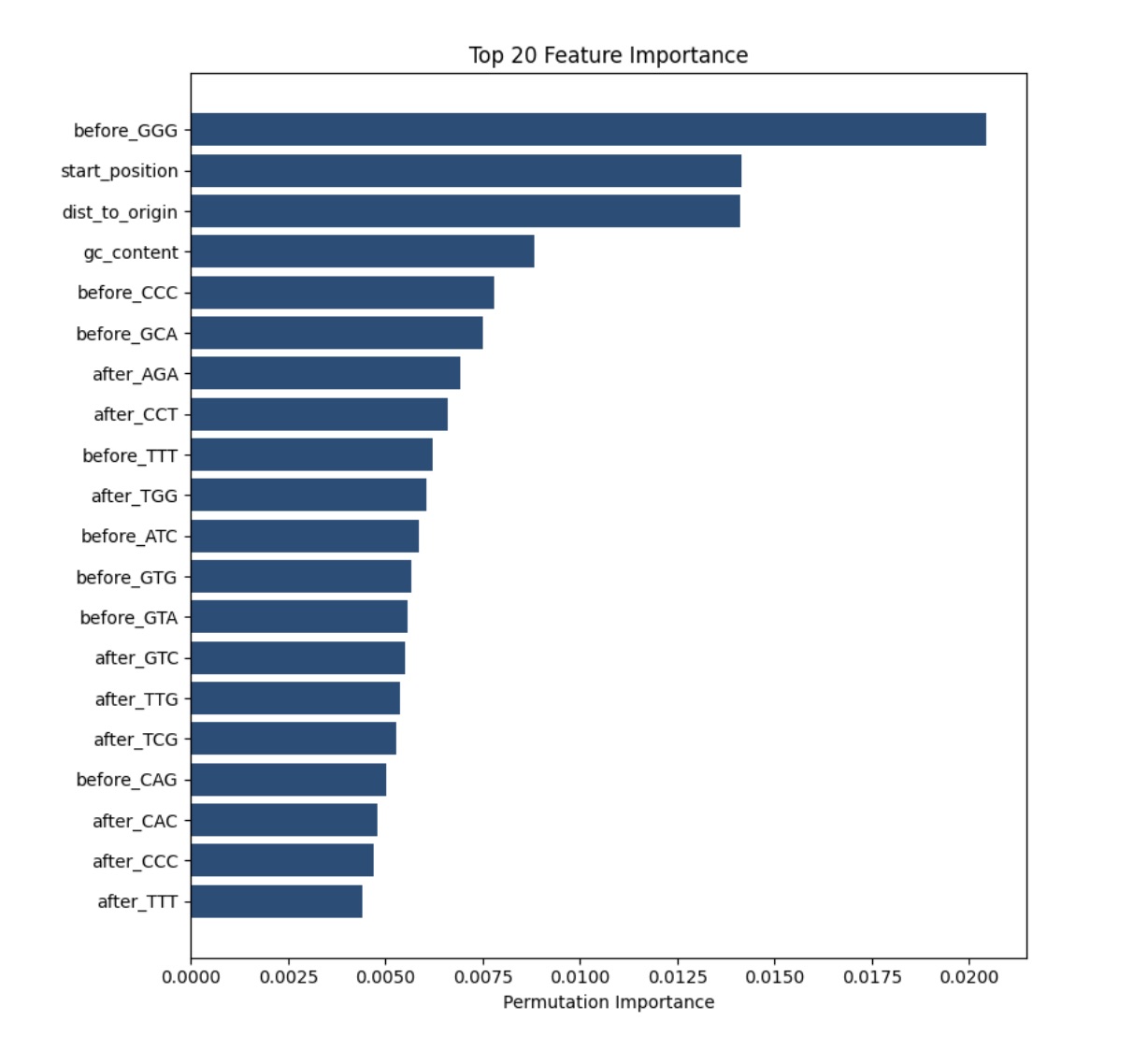

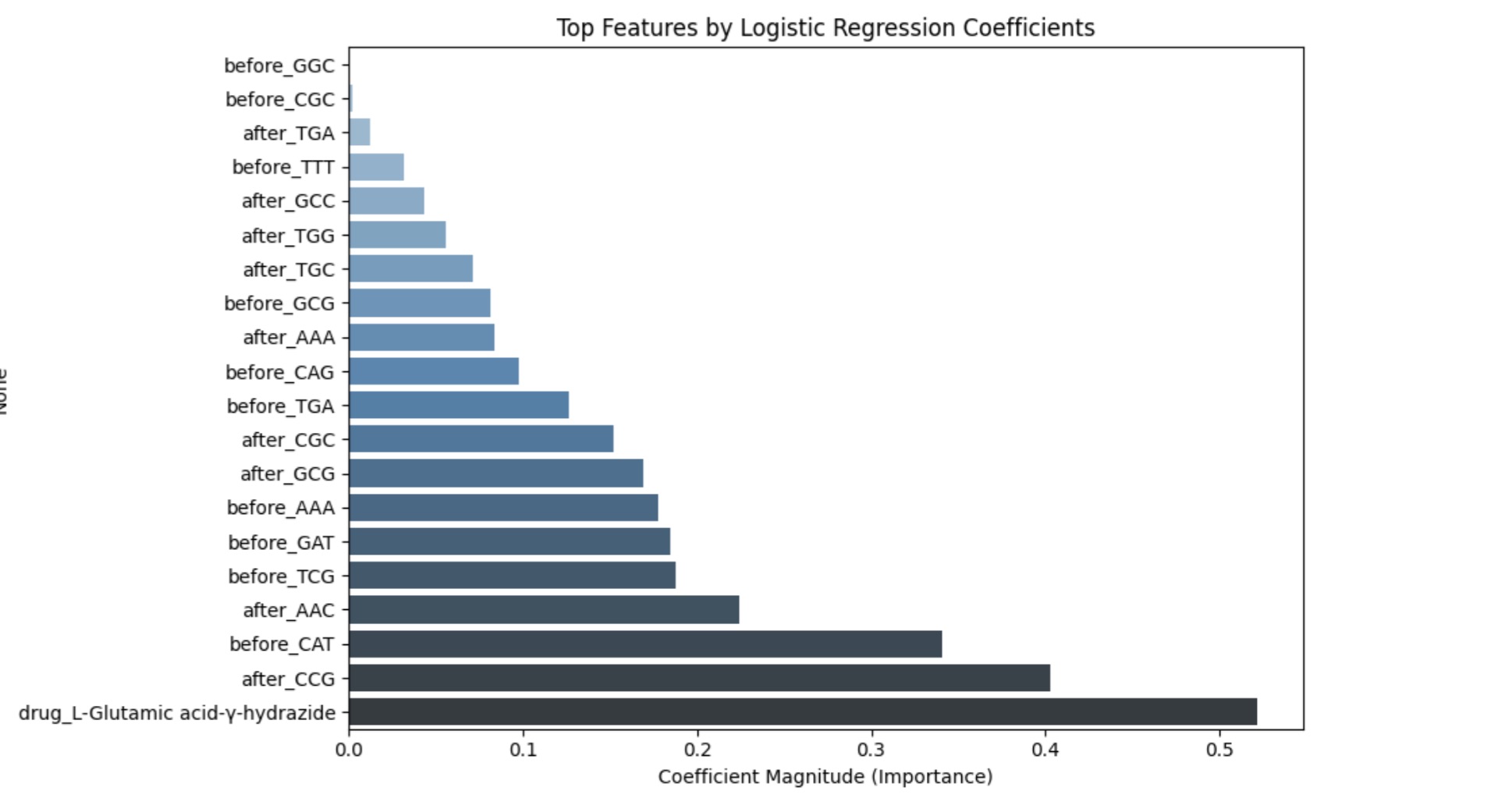

Evolution is very complex. However, it appears that evolution can be modeled in increasing specific terms with information gained pre-evolution. Layer one, for instance, was able to achieve an ROC-AUC score that is significantly higher than chance-level accuracy, especially considering biological constraints and complexity. Importantly, easily derivable sequence features other than raw sequences dominate the top features, signaling that the addition of more sequence features may boost performance. In layer two, while much closer to accuracy, a certain method called a Youden's J could find the highest performing split between positives and negatives and may improve the accuracy in layer two. Finally, layer three also showed significant performance considered biological complexity, and may be improved by using a XGBoost tree, essentially an improved Random Forest. Additionally, both layer two and three could benefit from additional data sets, which future work may look towards, as well as the testing of each layer on new data. Multiple layers of the model show significant potential to be able to predict information about the mutation before it occurs, and it is a promising field that should be further developed. Future work could look at improving upon the accuracy of the model, adding more layers such as mutation function prediction, and the use of a Large Language Model to predict the genome of the mutation.

References: Alaoui Mdarhri, H., Benmessaoud, R., Yacoubi, H., Seffar, L., Guennouni Assimi, H., Hamam, M., Boussettine, R., Filali-Ansari, N., Lahlou, F. A., Diawara, I., Ennaji, M. M., & Kettani-Halabi, M. (2022). Alternative therapeutic approaches to conventional antibiotics: Advantages, limitations, and potential application in medicine. Antibiotics, 11(12), 1826. https://doi.org/10.3390/antibiotics11121826 Barricklab. (2022). LTEE-Ecoli: Genomics resources for the long-term evolution experiment with Escherichia coli [Source code]. GitHub. https://github.com/barricklab/LTEE-Ecoli Brown, C. T., Fishwick, L. K., Chokshi, B. M., Cuff, M. A., Jackson, J. M., 4th, Oglesby, T., Rioux, A. T., Rodriguez, E., Stupp, G. S., Trupp, A. H., Woollcombe-Clarke, J. S., Wright, T. N., Zaragoza, W. J., Drew, J. C., Triplett, E. W., & Nicholson, W. L. (2011). Whole-genome sequencing and phenotypic analysis of Bacillus subtilis mutants following evolution under conditions of relaxed selection for sporulation. Applied and Environmental Microbiology, 77(19), 6867–6877. https://doi.org/10.1128/AEM.05272-11 Crozat, E., Philippe, N., Lenski, R. E., Geiselmann, J., & Schneider, D. (2005). Long-term experimental evolution in Escherichia coli. XII. DNA topology as a key target of selection. Genetics, 169(2), 523–532. https://doi.org/10.1534/genetics.104.035717 Despotovic, A., Milosevic, B., Cirkovic, A., Vujovic, A., Cucanic, K., Cucanic, T., & Stevanovic, G. (2021). The impact of COVID-19 on the profile of hospital-acquired infections in adult intensive care units. Antibiotics, 10(10), 1146. https://doi.org/10.3390/antibiotics10101146 Gargate, N., Laws, M., & Rahman, K. M. (2025). Current economic and regulatory challenges in developing antibiotics for Gram-negative bacteria. NPJ Antimicrobials and Resistance, 3(1), 50. https://doi.org/10.1038/s44259-025-00123-1 Good, B. H., & Hallatschek, O. (2018). Effective models and the search for quantitative principles in microbial evolution. Current Opinion in Microbiology, 45, 203–212. https://doi.org/10.1016/j.mib.2018.11.005 Hickman, R. A., Munck, C., & Sommer, M. O. A. (2017). Time‑resolved tracking of mutations reveals diverse allele dynamics during Escherichia coli antimicrobial adaptive evolution to single drugs and drug pairs. Frontiers in Microbiology, 8, Article 893. https://doi.org/10.3389/fmicb.2017.00893 Jezequel, N., Lagomarsino, M. C., Heslot, F., & Thomen, P. (2013). Long-term diversity and genome adaptation of Acinetobacter baylyi in a minimal-medium chemostat. Genome Biology and Evolution, 5(1), 87–97. https://doi.org/10.1093/gbe/evs120 Kallonen, T., Brodrick, H. J., Harris, S. R., Corander, J., Brown, N. M., Martin, V., Peacock, S. J., & Parkhill, J. (2017). Systematic longitudinal survey of invasive Escherichia coli in England demonstrates a stable population structure only transiently disturbed by the emergence of ST131. Genome Research, 27(8), 1437–1449. https://doi.org/10.1101/gr.216606.116 Knöppel, A., Knopp, M., Albrecht, L. M., Lundin, E., Lustig, U., Näsvall, J., & Andersson, D. I. (2018). Genetic adaptation to growth under laboratory conditions in Escherichia coli and Salmonella enterica. Frontiers in Microbiology, 9, 756. https://doi.org/10.3389/fmicb.2018.00756 Lee, C. R., Cho, I. H., Jeong, B. C., & Lee, S. H. (2013). Strategies to minimize antibiotic resistance. International Journal of Environmental Research and Public Health, 10(9), 4274–4305. https://doi.org/10.3390/ijerph10094274 Maeda, T., Iwasawa, J., Kotani, H., Sakata, N., Kawada, M., Horinouchi, T., Sakai, A., Tanabe, K., & Furusawa, C. (2020). High-throughput laboratory evolution reveals evolutionary constraints in Escherichia coli. Nature Communications, 11(1), 5970. https://doi.org/10.1038/s41467-020-19713-w Naddaf, M. (2024). 40 million deaths by 2050: Toll of drug-resistant infections to rise by 70%. Nature, 633, 747–748. https://doi.org/10.1038/d41586-024-03033-w National Center for Biotechnology Information. (1998). Escherichia coli str. K‑12 substr. MG1655, complete genome (GenBank accession U00096.3) [Genome sequence]. NCBI. https://www.ncbi.nlm.nih.gov/nuccore/U00096 National Center for Biotechnology Information. (2009). Escherichia coli B str. REL606, complete genome (RefSeq accession NC_012967.1) [Genome sequence]. NCBI. https://www.ncbi.nlm.nih.gov/nuccore/NC_012967.1 National Center for Biotechnology Information. (2011). Escherichia coli str. K‑12 substr. MDS42, complete genome (RefSeq accession AP012306.1) [Genome sequence]. NCBI. https://www.ncbi.nlm.nih.gov/nuccore/AP012306.1 Patra, M., Gupta, A. K., Kumar, D., & Kumar, B. (2025). Antimicrobial resistance: A rising global threat to public health. Infection and Drug Resistance, 18, 5419–5437. https://doi.org/10.2147/IDR.S530557 Rannon, E., Shaashua, S., & Burstein, D. (2025). DRAMMA: A multifaceted machine learning approach for novel antimicrobial resistance gene detection in metagenomic data. Microbiome, 13(1). https://doi.org/10.1186/s40168-025-02055-4 Robillard, D. W., Sundermann, A. J., Raux, B. R., & Prinzi, A. M. (2024). Navigating the network: A narrative overview of AMR surveillance and data flow in the United States. Antimicrobial Stewardship & Healthcare Epidemiology, 4(1), e55. https://doi.org/10.1017/ash.2024.64 Salam, M. A., Al-Amin, M. Y., Salam, M. T., Pawar, J. S., Akhter, N., Rabaan, A. A., & Alqumber, M. A. A. (2023). Antimicrobial resistance: A growing serious threat for global public health. Healthcare, 11(13), 1946. https://doi.org/10.3390/healthcare11131946 Sulayyim, H. J. A., Ismail, R., Hamid, A. A., & Ghafar, N. A. (2022). Antibiotic resistance during COVID-19: A systematic review. International Journal of Environmental Research and Public Health, 19(19), 11931. https://doi.org/10.3390/ijerph191911931 Tang, R., Luo, R., Tang, S., Song, H., & Chen, X. (2022). Machine learning in predicting antimicrobial resistance: A systematic review and meta-analysis. International Journal of Antimicrobial Agents, 60(6), 106684. https://doi.org/10.1016/j.ijantimicag.2022.106684 Ventola, C. L. (2015). The antibiotic resistance crisis: Part 1: Causes and threats. Pharmacy and Therapeutics, 40(4), 277–283. https://pmc.ncbi.nlm.nih.gov/articles/PMC4378521/ World Health Organization. (2020). Global antimicrobial resistance surveillance system (GLASS) report: Early implementation 2020 (CC BY-NC-SA 3.0 IGO). World Health Organization. https://apps.who.int/iris/handle/10665/332081 World Health Organization. (2023, November 21). Antimicrobial resistance. World Health Organization. https://www.who.int/news-room/fact-sheets/detail/antimicrobial-resistance
