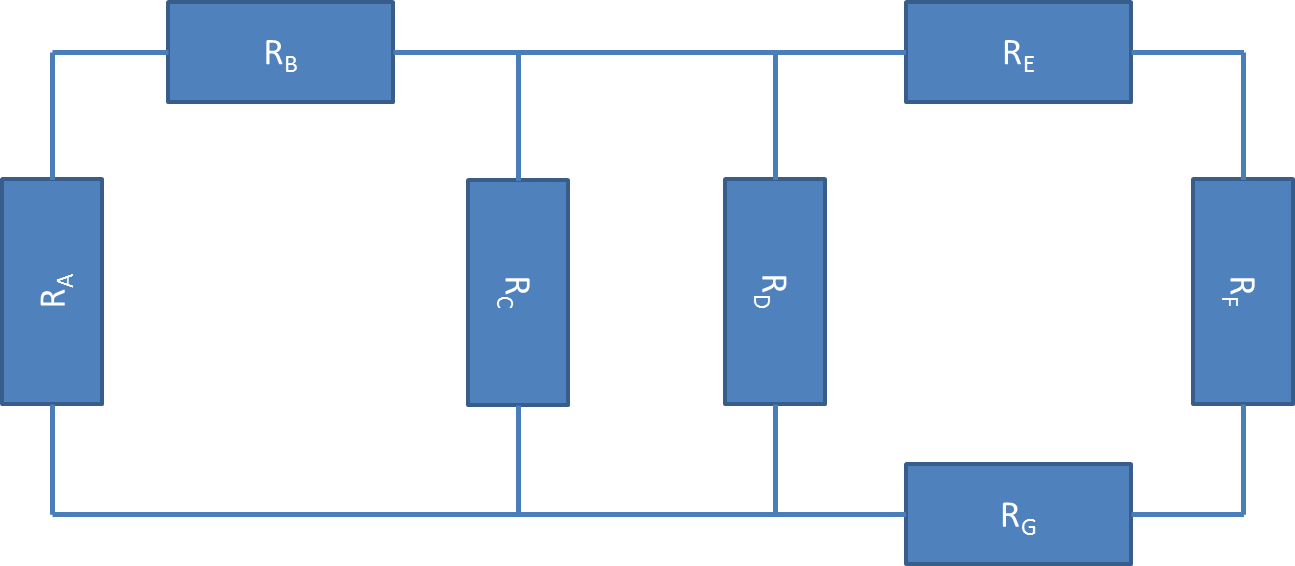

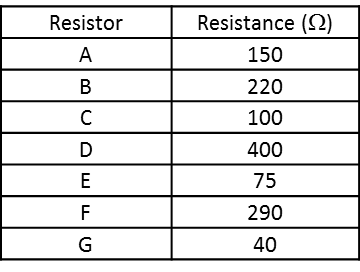

| First, recognize the series and parallel resistors in this circuit. Start by reducing resistors A and B into an equivalent resistance: | ![]() |

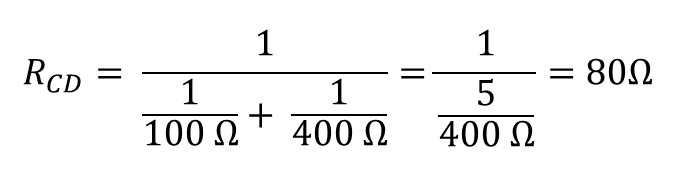

| Next, reduce the parallel resistors C and D: | ![]() |
| Third, reduce series resistors E, F and G: | ![]() |

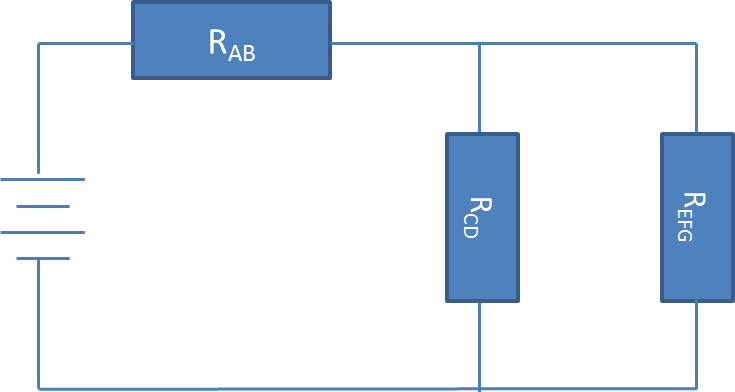

| The new configuration would look like this: | ![]() |

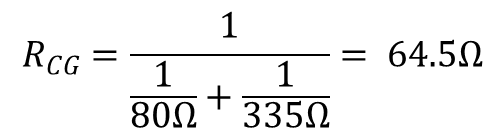

| Now, solve RCD and REFG which are in parallel: | ![]() |

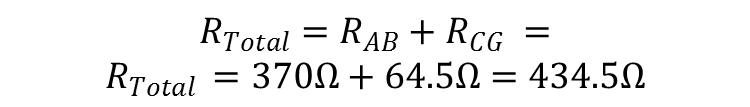

| Finally, solve the equation by adding the equivalent resistances since they are in series: | ![]() |
